A working raspberry pi voice chat bot version 1

First version of a working and offline voice bot

Posted Nov 25, 2025

By Ujwal Iyer

8 min read

This post walks through the full system I built:

Architecture
Libraries and tools
How each service works
The Ramayana RAG pipeline
Key C# snippets that glue everything together

1. What this bot actually does

As of today, my Kid Voice Bot can:

Record audio from a USB mic for a few seconds
Transcribe it to text with Whisper
Optionally pull context from a Ramayana PDF using a custom RAG index
Ask Ollama (Llama 3.2 1B) for a short kid friendly answer
Speak the answer using Piper TTS
Play the audio out of speakers

The whole thing is wrapped in a simple console UX:

Hit ENTER to record
Bot answers in voice
Type /quit to exit

All core behaviour is config driven from appsettings.json

2. Architecture

Layer	Technology	Why
STT	Whisper (whisper.cpp via Whisper.Net)	Fast, accurate, runs on Pi 5
LLM	Ollama (Llama 3.2 1B)	Tight latency + high control
TTS	Piper	Natural child-friendly voice, ultra fast
RAG	Embedding + cosine similarity + Ramayana PDF	Cultural grounding
Audio	arecord + aplay	Works well with ALSA on Raspberry Pi
Language	C# .NET 8	Strong typing + easy modularization

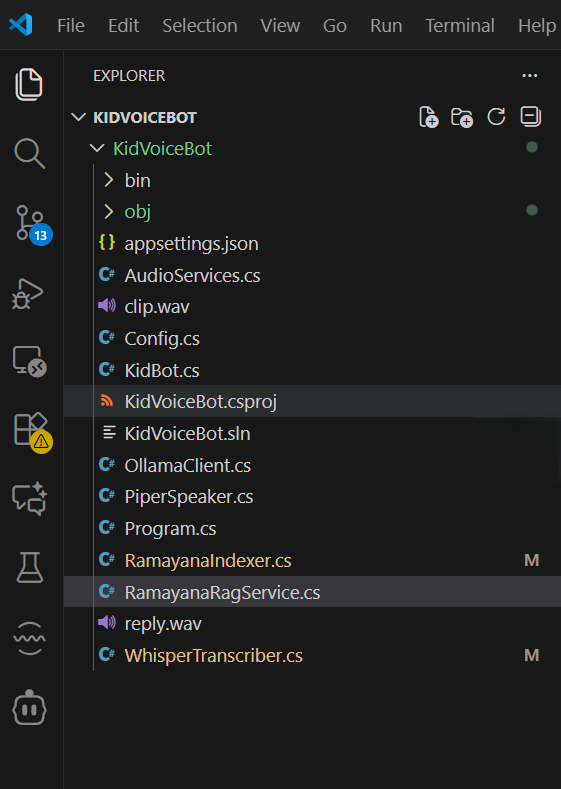

Logical Components

Audio layer

AudioRecorder for recording
AudioPlayer for playback

Model layer

WhisperTranscriber for speech to text
OllamaClient for LLM calls
PiperSpeaker for text to speech

RAG layer

RamayanaIndexer to build a JSON index from a Ramayana PDF
RamayanaRagService to fetch relevant chunks at runtime

Orchestration layer

KidBot - the main loop that ties everything together
Program - entry point and mode switch (index vs run)

Configuration

appsettings.json and Config classes

3. Configuration-Driven System

Everything works off a single appsettings.json file. This makes testing/tuning easy.


{
  "Audio": {
    "SampleRate": 16000,
    "Channels": 1,
    "SecondsPerClip": 4
  },
  "Models": {
    "WhisperPath": "/home/admin/models/whisper/ggml-base.en-q5_1.bin",
    "PiperVoicePath": "/home/admin/models/piper/en_US-amy-medium.onnx",
    "PiperExe": "/home/admin/.piper-venv/bin/piper"
  },
  "Ollama": {
    "BaseUrl": "http://localhost:11434",
    "Model": "llama3.2:1b",
    "SystemPrompt": "You are a friendly, kid-safe assistant. Use very simple words, 2-3 short sentences."
  },
  "Rag": {
    "Enabled": true,
    "QdrantEndpoint": "http://localhost:6333",
    "CollectionName": "ramayana",
    "EmbeddingModel": "nomic-embed-text",
    "TopK": 3
  },
  "Ramayana": {
    "PdfPath": "/home/admin/data/ramayana.pdf",
    "ChunkCharacters": 900,
    "IndexPath": "/home/admin/data/ramayana_index.json"
  }
}

4. Audio Layer (Recording + Playback)

On the Pi I decided to keep it simple and lean on ALSA using lightweight process wrappers inside the AudioServices.cs class. ALSA is the lowest level of the Linux sound stack, and can be access through the CLI.

Recording (AudioRecorder)


public static async Task<string> RecordWavAsync(string path, AudioConfig cfg)
{
    var args = $"-f S16_LE -r {cfg.SampleRate} -c {cfg.Channels} " +
               $"-d {cfg.SecondsPerClip} -t wav -q \"{path}\"";

    var psi = new ProcessStartInfo("arecord", args)
    {
        RedirectStandardError = true,
        RedirectStandardOutput = true
    };

    using var p = Process.Start(psi);
    if (p == null)
        throw new InvalidOperationException("Failed to start 'arecord'.");

    await p.WaitForExitAsync();
    if (p.ExitCode != 0)
    {
        var err = await p.StandardError.ReadToEndAsync();
        throw new InvalidOperationException($"arecord failed: {err}");
    }

    return path;
}

Playback (AudioPlayer)


public static async Task PlayWavAsync(string wavPath)
{
    var psi = new ProcessStartInfo("aplay", $"\"{wavPath}\"")
    {
        RedirectStandardError = true,
        RedirectStandardOutput = true
    };

    using var p = Process.Start(psi);
    if (p == null)
    {
        Console.WriteLine("Could not start 'aplay'.");
        return;
    }

    await p.WaitForExitAsync();
    if (p.ExitCode != 0)
    {
        var err = await p.StandardError.ReadToEndAsync();
        Console.WriteLine($"aplay error: {err}");
    }
}

5. Whisper STT Integration

For STT, I used Whisper.Net, which wraps whisper.cpp nicely for C#. I load the GGML model from the config path.


public WhisperTranscriber(string modelPath)
{
    if (string.IsNullOrWhiteSpace(modelPath))
        throw new ArgumentException("Whisper model path is not configured.", nameof(modelPath));

    _factory = WhisperFactory.FromPath(modelPath);
    _processor = _factory.CreateBuilder()
        .WithLanguage("en")
        .Build();
}

running the actual transcription below, which gives me plain text from the child’s speech. I keep it raw and simple and handle grammar problems at the LLM layer.


public async Task<string> TranscribeAsync(string wavPath)
{
    if (!File.Exists(wavPath))
        throw new FileNotFoundException("Audio file not found", wavPath);

    var sb = new StringBuilder();

    await using var fs = File.OpenRead(wavPath);
    await foreach (var segment in _processor.ProcessAsync(fs))
    {
        sb.Append(segment.Text);
    }

    return sb.ToString().Trim();
}

6. Piper TTS- speaking back to the child

Piper is called as an external process as well. Again, small wrapper, clear contract.


public PiperSpeaker(ModelsConfig models)
{
    _exe = string.IsNullOrWhiteSpace(models.PiperExe)
        ? "/usr/bin/piper"
        : models.PiperExe;

    _modelPath = models.PiperVoicePath;

    if (string.IsNullOrWhiteSpace(_modelPath))
        throw new ArgumentException("Piper voice model path is not configured.", nameof(models.PiperVoicePath));
}

The actual speech:


public async Task SpeakAsync(string text, string wavOutPath)
{
    if (string.IsNullOrWhiteSpace(text))
    {
        Console.WriteLine("[TTS] Empty text. Skipping Piper.");
        return;
    }

    var psi = new ProcessStartInfo(_exe)
    {
        RedirectStandardInput = true,
        RedirectStandardOutput = true,
        RedirectStandardError = true,
        UseShellExecute = false
    };

    psi.ArgumentList.Add("-m");
    psi.ArgumentList.Add(_modelPath);
    psi.ArgumentList.Add("-f");
    psi.ArgumentList.Add(wavOutPath);

    using var proc = Process.Start(psi);
    if (proc == null)
        throw new InvalidOperationException("Failed to start Piper.");

    await proc.StandardInput.WriteLineAsync(text);
    await proc.StandardInput.FlushAsync();
    proc.StandardInput.Close();

    var stderrTask = proc.StandardError.ReadToEndAsync();
    var stdoutTask = proc.StandardOutput.ReadToEndAsync();

    await proc.WaitForExitAsync();
    var stderr = await stderrTask;
    var stdout = await stdoutTask;

    if (proc.ExitCode != 0)
    {
        throw new InvalidOperationException(
            $"Piper exited with code {proc.ExitCode}.\nSTDERR:\n{stderr}\nSTDOUT:\n{stdout}");
    }
}

7. Ollama LLM Client + Prompting Strategy

Prompt constructed dynamically with system prompt + RAG context + child’s query.


public async Task<string> GenerateReplyAsync(
    string userText,
    string? context = null,
    CancellationToken ct = default)
{
    var sb = new StringBuilder();
    sb.AppendLine(_cfg.SystemPrompt);
    sb.AppendLine();

    if (!string.IsNullOrWhiteSpace(context))
    {
        sb.AppendLine("Here are some passages from the Ramayana. Use them to answer:");
        sb.AppendLine(context);
        sb.AppendLine();
    }

    sb.AppendLine($"Child said: \"{userText}\"");
    sb.AppendLine();
    sb.AppendLine("Answer in 3-4 simple sentences for a child.");

    var reqObj = new
    {
        model = _cfg.Model,
        prompt = sb.ToString(),
        stream = false,
        keep_alive = 300
    };

    var json = JsonSerializer.Serialize(reqObj);
    using var content = new StringContent(json, Encoding.UTF8, "application/json");
    var url = $"{_cfg.BaseUrl.TrimEnd('/')}/api/generate";

    HttpResponseMessage resp;
    try
    {
        resp = await Http.PostAsync(url, content, ct);
    }
    catch (Exception ex)
    {
        Console.WriteLine($"[LLM] HTTP error: {ex.Message}");
        return string.Empty;
    }

    var body = await resp.Content.ReadAsStringAsync(ct);
    ...
}

8. Ramayana RAG

I wanted my child to hear stories and answers rooted in the Ramayana (retelling by C Rajagopalachari), not random internet style text. So I implemented a custom RAG pipeline in 2 parts:

Indexer that runs once and creates a JSON index from the Ramayana PDF
Runtime service that looks up relevant chunks per question


using var doc = PdfDocument.Open(pdfPath);
foreach (Page page in doc.GetPages()) { ... }

//Chunking
if (sb.Length >= chunkChars)
    chunks.Add(new TextChunk { Text = sb.ToString().Trim(), ... });

//Embedding via Ollama:
var req = new { model = cfg.Rag.EmbeddingModel, input = text };
var resp = await Http.PostAsync(url, content, ct);

Full index persisted as JSON to the disk. At runtime, RamayanaRagService loads the JSON index and handles all similarity search.

9. KidBot Orchestration Layer

This is the glue that ties everything together.

Wait for ENTER
Record audio
Transcribe
Run RAG
Generate LLM reply
Speak via Piper
Playback
Repeat


clipPath = await AudioRecorder.RecordWavAsync("clip.wav", _config.Audio);
text = await _stt.TranscribeAsync(clipPath);
context = await _rag.TryGetContextAsync(text);
reply = await _llm.GenerateReplyAsync(text, context);
await _tts.SpeakAsync(reply, "reply.wav");
await AudioPlayer.PlayWavAsync("reply.wav");

10. Entry point and modes

The Program class sets up dependency wiring and supports two modes out of the box:

index - build or rebuild the Ramayana index
default - run the interactive voice bot


static async Task Main(string[] args)
{
    var configurationRoot = new ConfigurationBuilder()
        .SetBasePath(Directory.GetCurrentDirectory())
        .AddJsonFile("appsettings.json", optional: false)
        .Build();

    var config = configurationRoot.Get<Config>()
                 ?? throw new InvalidOperationException("Failed to bind appsettings.json to Config.");

    // Index mode
    if (args.Length > 0 && args[0].Equals("index", StringComparison.OrdinalIgnoreCase))
    {
        Console.WriteLine("Running Ramayana indexer...");
        await RamayanaIndexer.BuildIndexAsync(config);
        return;
    }

    Console.WriteLine("Starting Whisper (STT)...");
    await using var whisper = new WhisperTranscriber(config.Models.WhisperPath);

    Console.WriteLine("Starting Ollama client...");
    using var llm = new OllamaClient(config.Ollama);

    Console.WriteLine("Starting Piper (TTS)...");
    var tts = new PiperSpeaker(config.Models);

    var rag = new RamayanaRagService(config);
    var bot = new KidBot(config, whisper, llm, tts, rag);
    await bot.RunAsync();
}

11. What’s Next (Roadmap)

Audio layer

Add VAD (voice activity detection) to stop recording once silence is detected. This directly reduces Whisper processing time.
Instead of writing audio to disk and reading again, capture into memory
Add wake word (“Hey Rama”)
Keep Piper process warm- reduce per process startup cost

Embeddings

Better quality chunking: Right now it’s fixed character chunking. Upgrade to semantic chunking with overlap using Qdrant

LLM

Limit tokens generated (num_predict)
Shorter system prompt + context: Keep system prompt extremely tight and trim from topk from 5 to 2.
Ollama is loading/unloading the model each time: Add “keep_alive”: 300 to ensure the model is kept warm between queries.

Product Experience

Session memory per conversation
Safer guardrails using LlamaGuard
Add more RAG content- mahabharata, story teller, math, nature, space, etc
Add Agentic RAG layer using Microsoft Semantic Kernel, so requests are directly matched with the right collections in Qdrant
Graceful degradation- if RAG context is null, have a fallback answer

Raspberry Pi HAT NVMe SSD
